CenturionPro HP High Performance Bucking Machines – HP1 & HP3
HP refers to “High Performance” and represents our workhorse line of buckers, which include single and triple-workstation options. The high production value of these machines results in the industry’s highest buck rate per hour. The HP line utilizes two rollers that pull the stem into the machine, therefore popping the flowers off. This allows you to continuously feed the bucker for more efficient de-stemming.
HP1 BUCKER (STAND INCLUDED)
The HP1 comes with a bucker stand and table-top set-up legs included for added value and versatility. With 5 hole sizes, the HP1 accepts wet or dry stems up to 3/4” and can process up to 175 lbs wet (up to 35 lbs dry) per hour, replacing 5-7 human workers. When combined with the high productivity of the CenturionPro trimming machines, you’ll get the highest capacity harvesting system in the world! The HP1 comes complete with a 0.75 HP gear driven motor with variable speeds to provide unsurpassed power and adjustability. Thanks to the variable speed controls, both wet and dry products can be processed with ease! The system is easy to set up and is made of stainless steel and anodized aluminum making it robust as well as easy to clean. The HP1 plugs into a 110 volt, 15 amp circuit – EU/AUS Compatible. Backed by a 5 years warranty. The HP1 bucker is simple, powerful, and effective and will process product at an unprecedented rate.

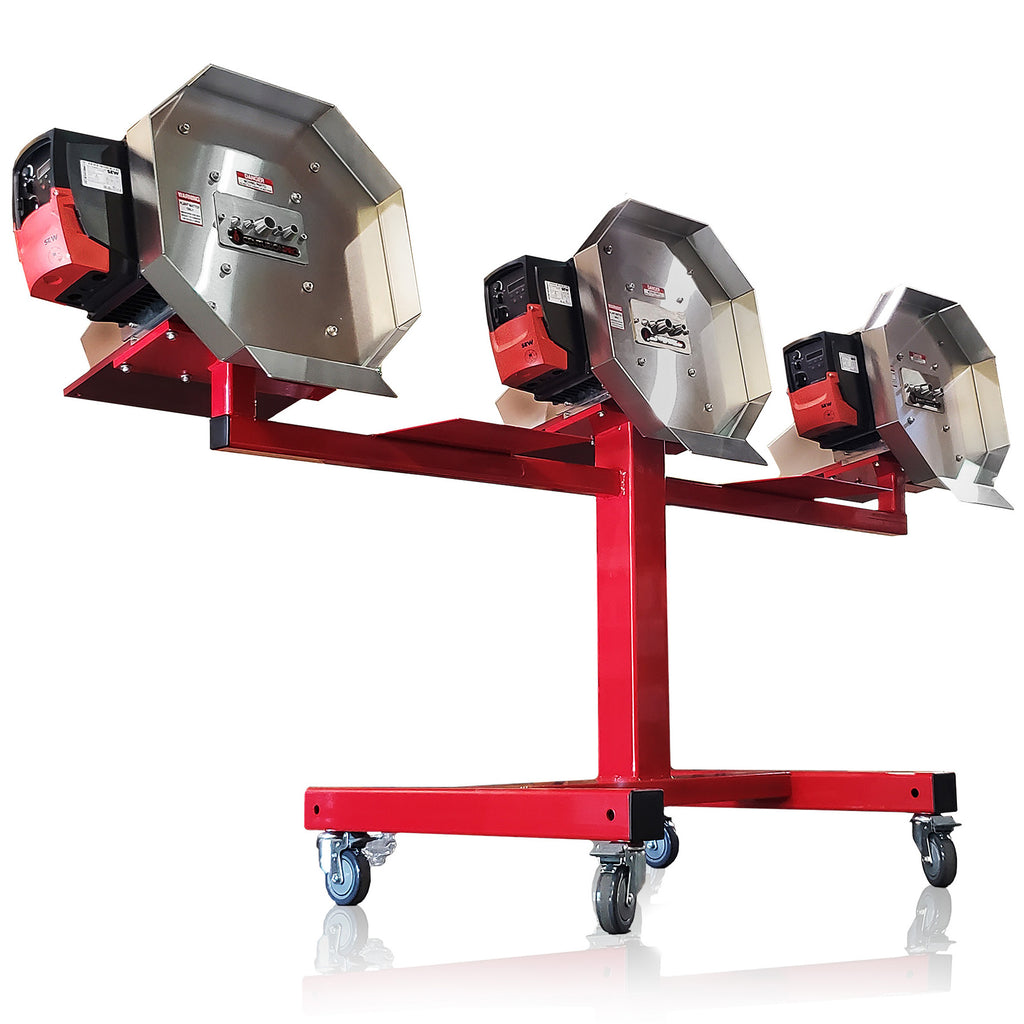

HP3 TRIPLE BUCKER (STAND INCLUDED)
The HP3 Triple Bucker provides triple the production capacity of the HP1, resulting in the industry’s highest buck rate per hour. This bucker utilizes two rollers per workstation that pull the stem into the machine, therefore popping the flowers off.
Complete with three workstations, the HP3 Triple Bucker is a multi-operator run industrial de-stemming machine that requires 3 operators for optimal speed and efficiency. Each workstation has 5 different sized holes to provide versatility and improve processing capacity. The HP3 Triple Bucker accepts stems up to 3/4” in diameter and can process up to 500 lbs wet (up to 100lbs dry) per hour of use. This triple-headed machine comes with a bucker stand included for added value and ease of de-stemming. The bucker stand comes standard with industrial casters.
When combined with the high productivity of a CenturionPro trimming machine, you’ll get the highest capacity harvesting system in the world! The HP3 Triple Bucker comes complete with three 0.75 HP gear driven motors with a variable speed controller to provide unsurpassed power, adjustability and control. Thanks to the variable speed controls, wet or dry product can be processed with ease! The system is easy to set up and is made of stainless steel and anodized aluminum making it robust as well as easy to clean. The HP3 Triple Bucker plugs into a 110 volt, 20 amp circuit – EU/AUS compatible. Backed by a 5 years warranty.
The HP3 Triple Bucker is quickly making a name for itself as the highest capacity bucker in the world! This bucker is simple, powerful and effective and will process product at an unprecedented
Add-Ons – Parts Kit
This is an essential spare parts kit for the HP Bucker Workstation containing the following:
• Parts Assembly kit – 1
• HP Roller Assembly – 2
• Front Cut Plate Assembly – 1
• Compression Springs – 2
• Spur Gears – 2
• HP Slide Bearings – 2
This kit is great to have on hand to keep your HP Bucker operating at all times.
Input Voltage: NA: 5 Amp – 120V, 60Hz Single Phase | EU,AUS: 2.5 Amp – 240V, 50Hz Single Phase
Current Draw: < 2.5A Operating
Weight: 198 lbs | 90 kg
Drive Motor: 0.75 hp, IP54 | 1690 RPM
Dimensions: 37′′ L x 32.5′′ W x 59′′ H
Circuit Breaker Required: NA: 15A/120V | EU, AUS: 15A/220V
Human Worker Replacement: 5-7 people
Feed Rate: Wet: up to 175 lbs/hr | Dry: up to 35 lbs/hr
Feed Entry Sizes: 5-Hole (3/16”, 1/4”, 3/8”, 1/2″, 3/4″)
Feed Type: Wet/Dry
Roller Sets: Neoprene Rubber
Motor Pulse: Yes
Variable Speed Control: Yes
Reverse Operation: Yes
Duty Cycle: Continuous
Pull Speed: 10-30 in/s
Pull Strength: > 400 lbs
Primary Materials: 304 Stainless Steel / Aluminum
Warranty: 10 years
