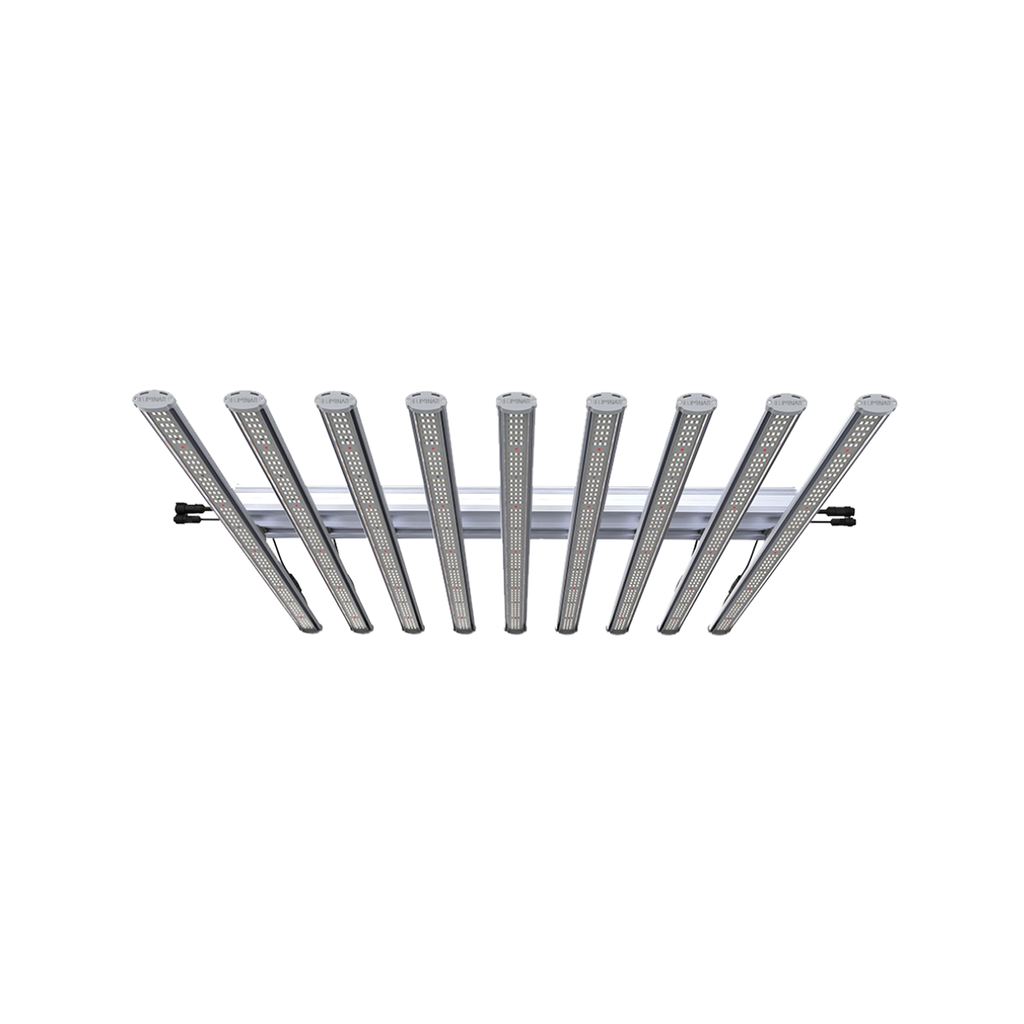

The iL9x is perfect for either large commercial facilities or stand-alone hobby use. The center Power Hub allows for hard mounting the LED bars to the Hub or remote mounting during multi-level grow environments, when every inch counts.
The iL9x 1000W from ILUMINAR has a tuned Full Spectrum array and engineered for vegetative and flower cycles that require high μmol performance at a lower clearance to the canopy.
The iL9x is now available in a higher efficacy giving the grower higher µmol per Joule output for the same wattage used. The ILUMINAR iL9x 1000W LED fixture delivers more when you need it most.
iL9x TECHNICAL SPECS
The iL9x 1000W LED is a full spectrum array designed for veg and flower cycles that require a high μmol performance at a lower clearance. Ideal for many settings from commercial facilities hobby gardeners. Enjoy the flexibility of hard mounting the LED bars to the center mast or remote mounting the bars directly to the rack for multi-level grow environments where every inch matters.
- PPF: 2600 µmol/s
- Efficacy: 2.6 µmol/j
- Input Power: 1000W
- Emitter Type: Osram SMD LED Diodes
- Input Power: Smart Sensing™ 120V to 277V & 347 to 480V
- Mounting Height: 6”-12” to top of Canopy
- Emitter Cooling: Passive / Extruded Case
- Dimming / Controllable: 0-10V Controllable
- Light Distribution +/- 5%: 125º
- Waterproof Rating: IP65 for Damp/Wet Conditions
- LED Lifespan (90% of Life): 55,000+ Hours
- Power Factor: >90%

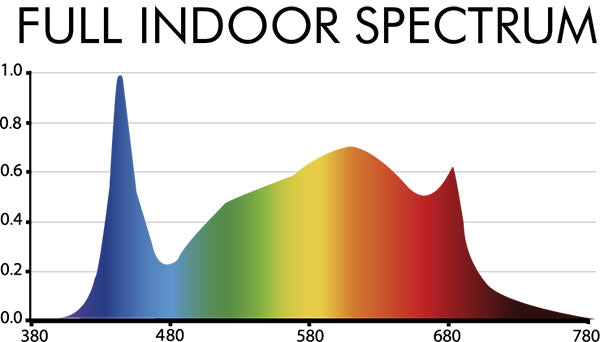

- Spectrum Tuned: FS Grow (Full Spectrum Growth)
- High Efficiency SMD LED Array
- Low Profile
- Warranty: 5 Years
- Height: 5 in / 129mm
- Width: 39.5 in / 1003 mm
- Length: 42in / 1067 mm
- Weight: 40.96 lbs | 18.58 kg

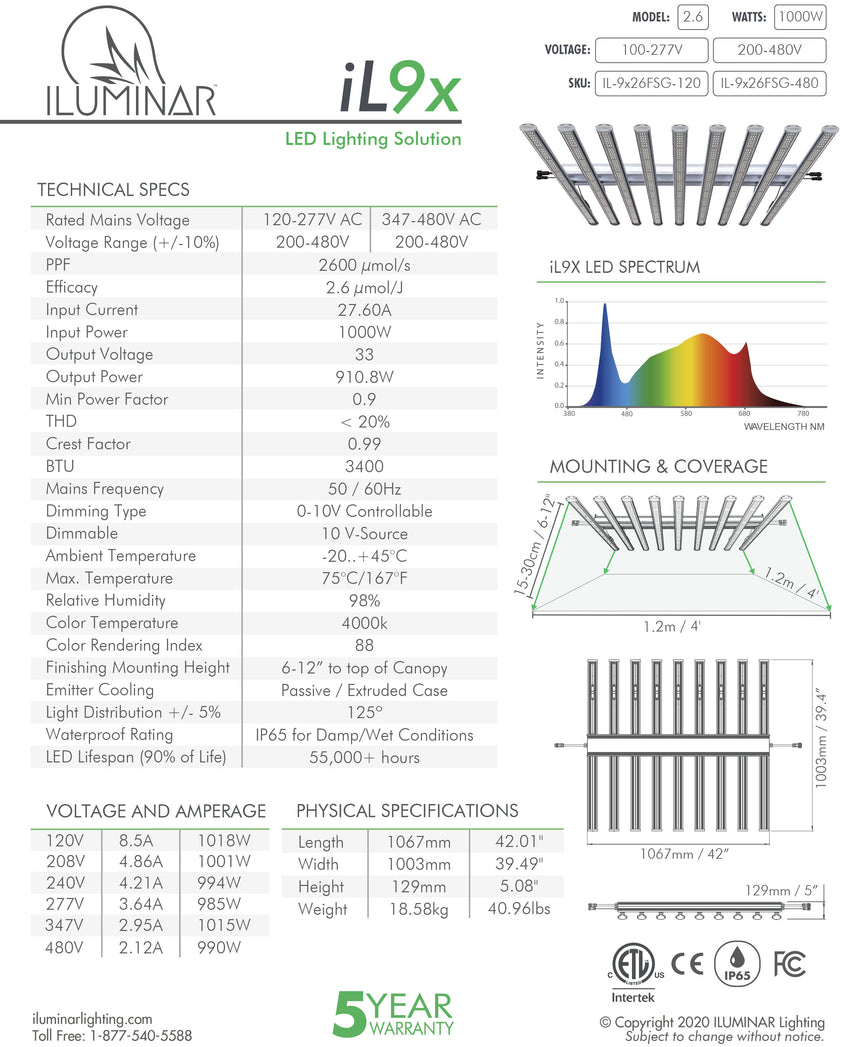

iL9x 1000W SPEC SHEET
